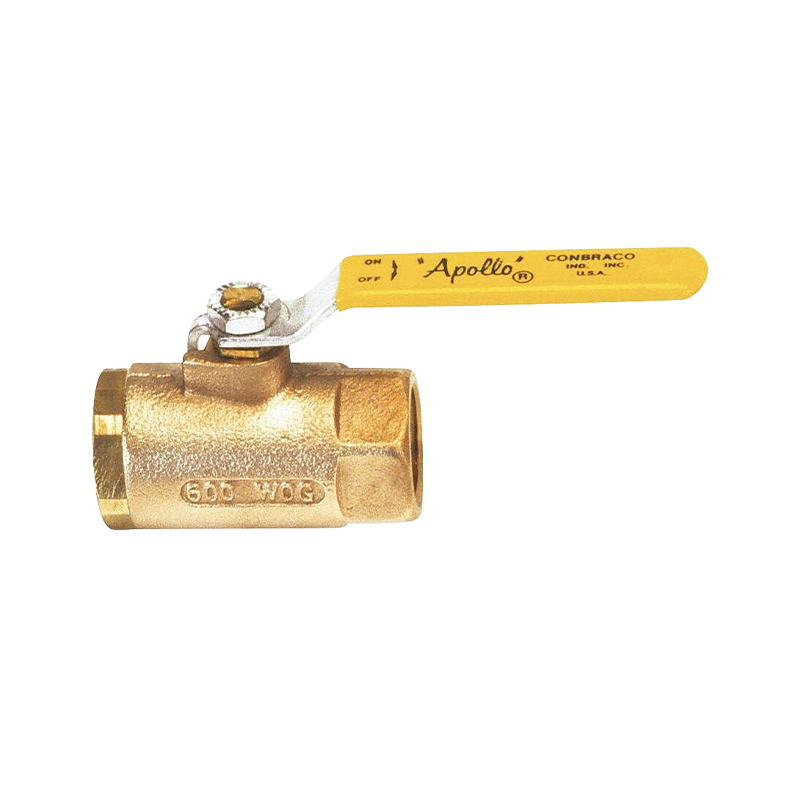

Apollo 70-102-01 Bronze Ball Valve 600 psi 3/8 in

Description

Apollo 70-102-01 Bronze Ball Valve is a two-piece, standard-port FNPT-threaded valve designed to deliver compact yet robust flow control in industrial fluid systems. Crafted in the USA as part of Apollo’s popular 70‑100 series, this 3/8″ valve handles up to 600 psi and 500 °F, suitable for water, oil, steam, and vacuum applications.

H2 Features

• 600 psi Cold Working Pressure (CWP) and 150 psi Saturated Steam (SWP)

• 500 °F maximum temperature rating

• Bronze body (ASTM B584-C84400) with chromium-plated brass ball

• RPTFE seats, PTFE body seal, and MPTFE stem packing

• Blow-out-proof stem with adjustable packing gland

• Vacuum-capable to 29 in Hg

• Made in USA with 5-year warranty, MSS SP-110 certified

H2 Technical Specifications

H2 Applications

• Industrial water, oil, and steam systems

• Compact shut-off in HVAC, lab, and process equipment

• Vacuum and compressed air service

• General-purpose flow isolation in commercial pipelines

H2 Installation Tips

• Use PTFE-compatible thread sealant or tape

• Hand-tighten then torque to Apollo specs (~100–300 in‑lb)

• Install lever-access-friendly orientation

• Cycle occasionally to maintain seal integrity; adjust gland if leaking

H2 Reasons to Buy

• Heavy-duty compact design: 600 psi/500 °F rating in small form

• Durable materials: bronze body & chrome ball for long-term performance

• Safety-certified: blow-out-proof stem, vacuum-rated, 5-year warranty

• US-made quality with full industrial compliance

• Easy to install and maintain with standard threading and replaceable seals
