Apollo 70‑107‑01 Bronze Ball Valve 600 psi

Description

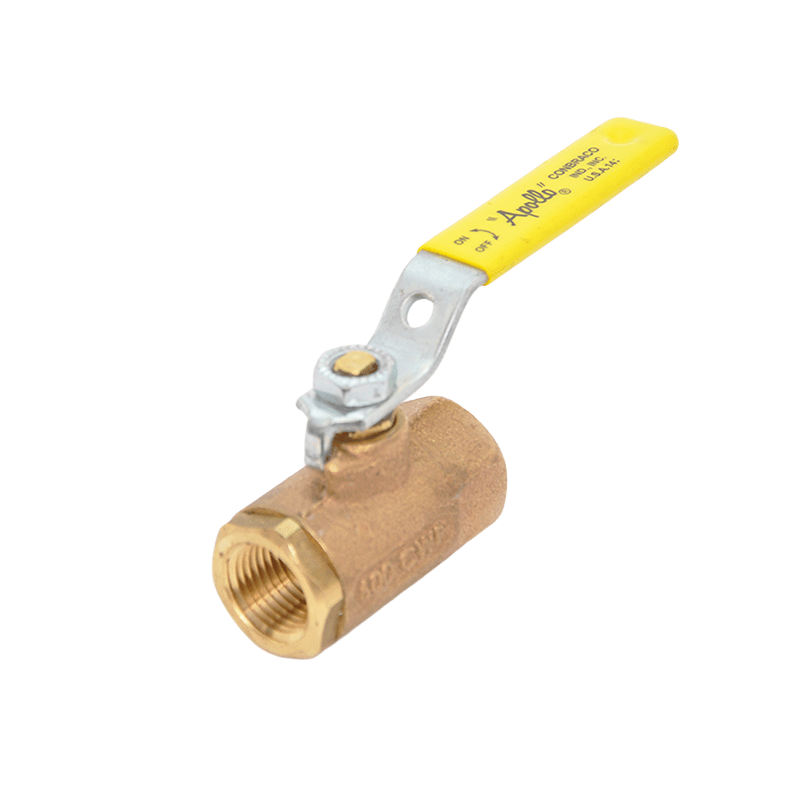

Apollo 70‑107‑01 Bronze Ball Valve is a two-piece, standard-port valve engineered to deliver dependable flow control in industrial fluid systems. Crafted in the USA, this valve is part of Apollo’s renowned 70‑100 series, designed for heavy-duty applications including water, oil, steam, and vacuum service.

H2 Features

• 600 psi Cold Working Pressure (CWP), 150 psi Saturated Steam (SWP) for versatile industrial use

• 500 °F maximum temperature rating suitable for hot fluid handling

• Chromium-plated brass ball, RPTFE seats, PTFE body seal, and MPTFE stem packing ensure tight shutoff and wear resistance

• Blow‑out‑proof stem with adjustable gland for enhanced safety and serviceability

• Vacuum-rated to 29 in Hg and meets MSS SP‑110 standards

• Made in the USA with a 5-year warranty to back long-term performance

H2 Technical Specifications

All data sourced from ValveMan, Cooney Brothers, Ballard Industrial, and PipingNow

H2 Applications

• Industrial water, oil, and gas systems

• Steam systems up to 500 °F

• Vacuum services in HVAC, process, and laboratory operations

• General-purpose shut-off and isolation in industrial piping

H2 Installation Tips

• Use PTFE-compatible thread sealant or tape

• Tighten hand then torque per Apollo specs (typically 200–600 in‑lb)

• Install with lever access upward for ease-of-operation

• Periodically cycle valve and adjust packing gland if minor leaks occur

H2 Reasons to Buy

• Heavy-duty performance: 600 psi rating and 500 °F capability

• Reliable seal integrity: chrome ball and premium soft goods prolong valve life

• Safety-focused design: blow-out-proof stem with adjustable packing

• Made in USA: with full regulatory certifications and 5‑year warranty

• Versatile use: one valve for water, oil, steam, and vacuum services
