Milton push-in elbow fitting 2209-1 – 1/4″

Description

🔧 Overview of the Milton Push-In Elbow Fitting 2209-1

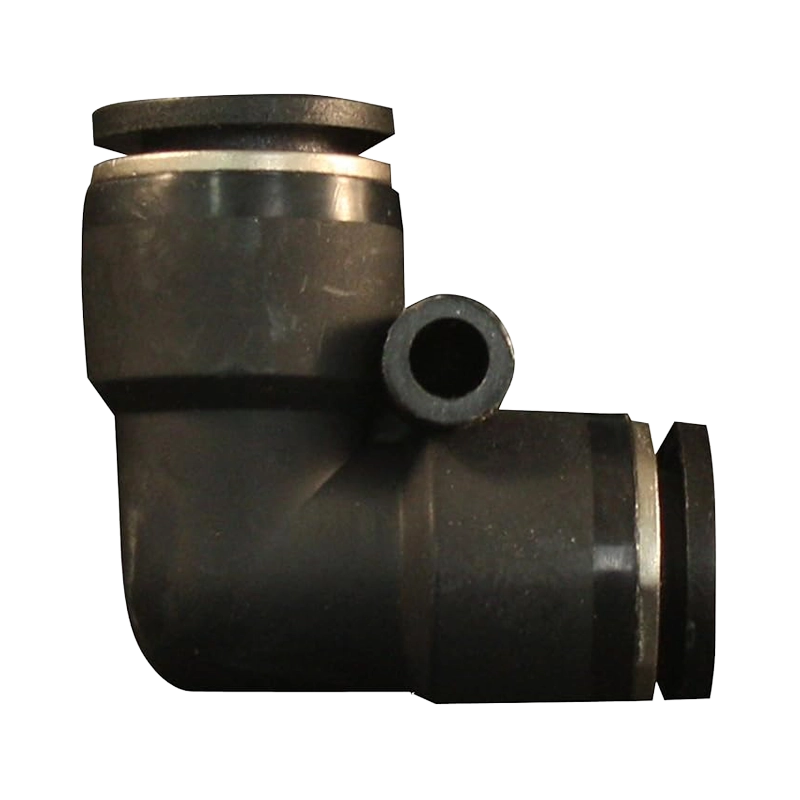

The Milton push-in elbow fitting 2209-1 is a compact and durable 90-degree connector for 1/4″ OD pneumatic tubing. Designed to facilitate efficient air routing in tight or complex pneumatic systems, this fitting enables smooth directional changes without adding bulk or creating leak points.

Thanks to its push-to-connect design, this milton push-in elbow fitting allows for quick installation and disconnection without tools—ideal for both permanent and temporary air line setups.

⚙️ Technical Specifications

• Model: 2209-1

• Connection Type: Push-in (both ports)

• Tubing Size: 1/4″ outer diameter

• Angle: 90° elbow

• Body Material: Composite

• Grip Mechanism: Stainless steel gripping teeth

• Max Working Pressure: 150 PSI

• Temperature Range: 32°F to 175°F

• Brand: MILTON

Its compact L-shape design makes it an excellent choice for areas with limited space, without sacrificing airflow performance or sealing reliability.

🧰 Common Applications

• Pneumatic manifolds

• Compressor systems

• Industrial automation and robotics

• CNC machinery air control

• General-purpose air line installations

This Milton elbow fitting is ideal for technicians and engineers looking to simplify hose routing in clean, organized systems.

💡 Key Benefits

• Quick connection: Installs in seconds without tools

• Space-efficient: Enables 90° directional changes in compact areas

• Leak-free performance: Built-in O-ring and gripping system ensure secure seal

• Reusable design: Easily disconnect and reconnect tubing multiple times

• High compatibility: Fits 1/4″ OD tubing made of nylon, polyethylene, or polyurethane

🛠 Installation Tips

1. Cut the tubing squarely and remove any burrs.

2. Insert the tubing into the fitting until it seats fully.

3. To disconnect, press the collar and pull the tubing out.

4. Avoid bending the tube near the fitting to preserve the seal.

5. Test with compressed air before full operation.

🏆 Why Choose Milton?

MILTON is a trusted industry name in pneumatic systems, offering robust, long-lasting components for professional environments. The 2209-1 push-in elbow fitting represents their commitment to high-quality materials, precise manufacturing, and simplified installation.
