MILTON 2204-7 3/8″ X 1/4″ T-TUBE

Description

🔧 Overview of the Milton Push-In Tee Fitting 2204-7

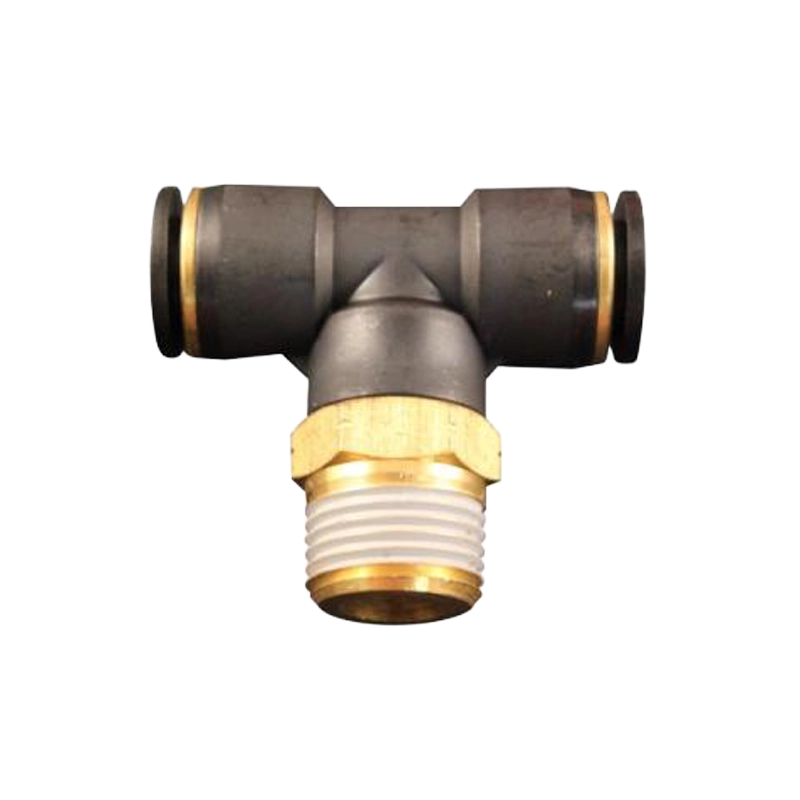

The Milton push-in tee fitting 2204-7 is a professional-grade T-style connector designed to split or combine airflow in pneumatic systems. Built by MILTON, this hybrid fitting allows a 3/8″ OD push-in tubing connection on two ends and a 1/4″ NPT male thread on the third, making it ideal for integrating hoses with threaded components or valves.

This milton push-in tee fitting is perfect for compressed air lines in factories, maintenance shops, or industrial automation environments where speed, reliability, and flexibility are essential.

⚙️ Technical Specifications

• Model: 2204-7

• Tube Connection: 3/8″ OD (push-in, 2 ports)

• Thread Connection: 1/4″ NPT male (1 port)

• Body Material: Composite with brass thread insert

• Pressure Rating: Up to 150 PSI

• Temperature Range: 32°F to 175°F

• Brand: MILTON

The composite body reduces weight without compromising strength, while the brass thread ensures corrosion resistance and sealing performance.

🧰 Common Applications

• Pneumatic control panels

• Automation systems

• Air compressor hose extensions

• Manufacturing machinery

• General workshop air systems

This Milton push-in tee fitting allows quick tube installation without tools, helping users save time and reduce connection failure risks. The integrated NPT port lets you easily tie in valves, regulators, or gauges.

💡 Key Benefits

• Quick connect push-in design: Tool-free tubing installation

• Hybrid compatibility: Connects both tubing and threaded components

• Compact and efficient: Ideal for space-constrained pneumatic layouts

• Secure grip: Stainless steel teeth hold tubing firmly in place

• Leak-free: Tapered thread and O-ring design ensure tight seals

🛠 Installation Tips

1. Cut tubing squarely and remove any burrs.

2. Push tubing into the 3/8″ ports until fully seated.

3. Apply thread sealant to the 1/4″ NPT male thread.

4. Tighten the threaded end into your component.

5. Test with air pressure to confirm seal integrity.

🏆 Why Choose Milton?

MILTON has built its reputation on producing long-lasting, high-performance pneumatic components. The 2204-7 push-in tee fitting reflects their commitment to providing innovative, user-friendly solutions that technicians trust daily.
