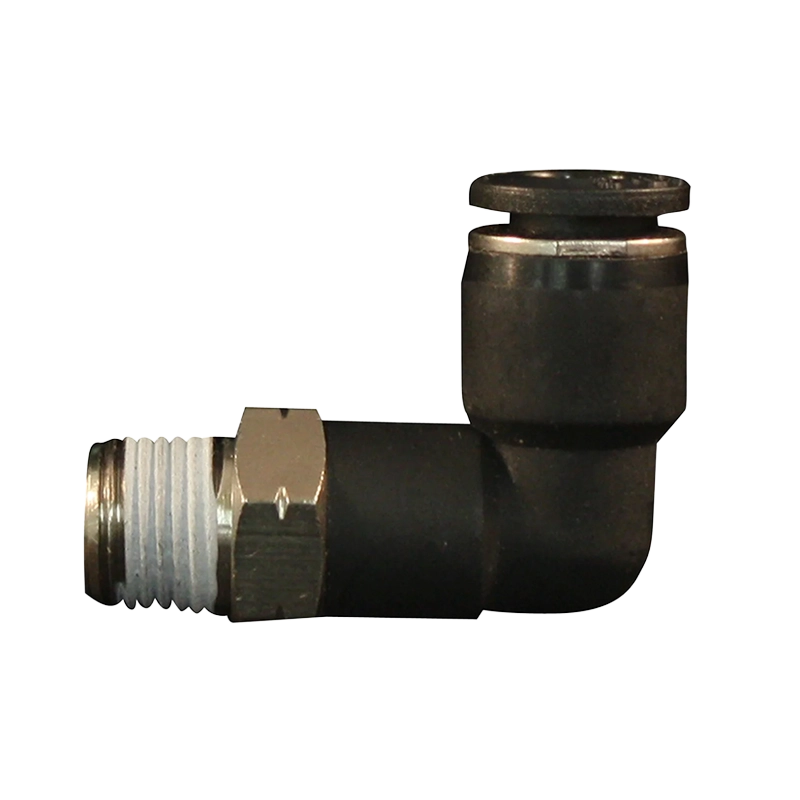

Male tubing elbow 5/16 x 1/4 inch NPT – MILTON 2202-6

Description

🔧 MILTON 2202-6 – male tubing elbow 5/16 x 1/4 inch NPT for pneumatic systems

The male tubing elbow 5/16 x 1/4 inch NPT MILTON 2202-6 is designed to provide a reliable 90-degree air connection in pneumatic systems. Built from high-quality brass, this fitting ensures durability, leak resistance, and corrosion protection in industrial and workshop environments.

It features a 5/16″ tube push-to-connect inlet and a 1/4″ NPT male thread outlet, making it perfect for quick installations where angled connections are necessary—such as in tight spaces behind equipment, inside enclosures, or along machine panels.

MILTON’s 2202-6 elbow provides smooth internal passages for unrestricted air flow and a secure seal without the need for additional tools or sealant on the push-fit end. This fitting is ideal for connecting polyethylene, polyurethane, or nylon tubing in air compressors, automation systems, or tool stations.

🔧 Key features

• Brand: MILTON

• Model: 2202-6

• Type: Male tubing elbow fitting

• Inlet connection: 5/16″ push-to-connect

• Outlet connection: 1/4″ NPT male thread

• Material: Brass body

• Angle: 90° elbow

• Operating pressure: Up to 150 PSI

• Operating temperature: -10°F to 200°F

• Seal type: O-ring internal seal

• Usage: Pneumatic lines, air tools, automation

🧠 Ideal for:

• Air compressors

• Assembly lines

• Automation systems

• Industrial machine air connections

• Garage tool setups

• Spray booth lines

✅ Benefits of the MILTON male tubing elbow 5/16 x 1/4 inch NPT

• Angled connection for tighter installations

• Leak-proof brass body for industrial reliability

• Tool-free push connection for tubing

• Corrosion-resistant material for long service life

• Standard 1/4″ NPT male thread fits most pneumatic setups

• Quick installation and removal

🧾 Technical specifications

• Brand: MILTON

• Model number: 2202-6

• Inlet size: 5/16 inch tube push-to-connect

• Outlet size: 1/4 inch NPT male

• Material: Brass

• Angle: 90 degrees

• Max pressure: 150 PSI

• Temperature range: -10°F to 200°F

• Seal type: Buna-N or Viton (depending on batch)

• Compatible tubing: Polyurethane, nylon, polyethylene

⚠️ Usage notes

Ensure tubing is fully inserted into the push-to-connect end until it locks. Avoid exceeding pressure and temperature ratings. Ideal for air use only—do not use with liquids unless specified.
