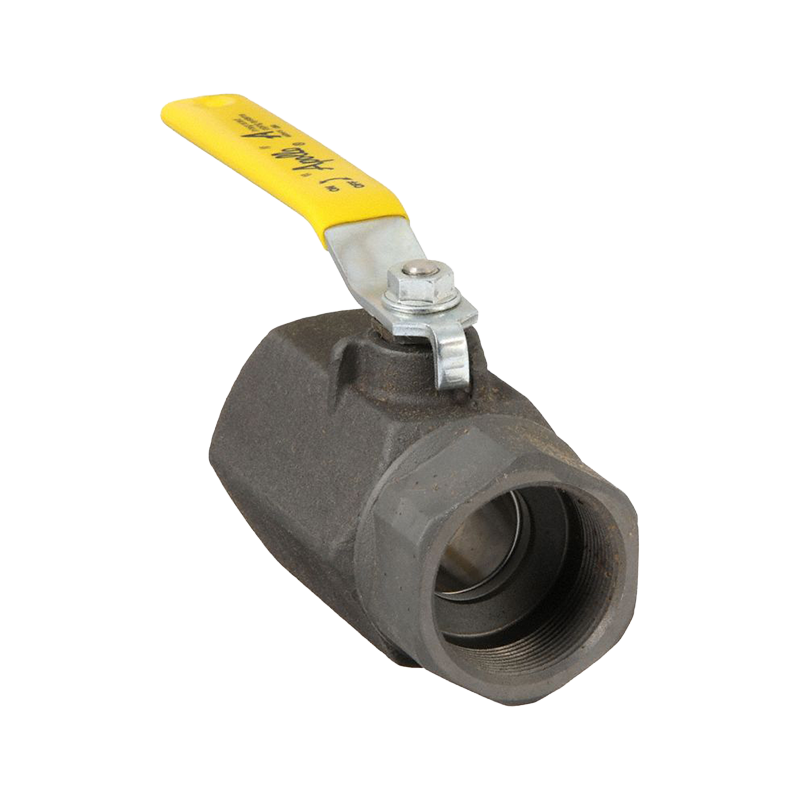

Apollo 73A‑108‑01 Ball Valve 2″ Carbon Steel 2000 lb

Apollo 73A‑108‑01 carbon steel ball valve delivers 2000 lb WOG capacity in a 2″ standard‑port FNPT design for heavy‑duty industrial service.

Description

Apollo 73A‑108‑01 ball valve is a high-strength, two-piece, standard-port valve engineered for critical fluid and gas service in industrial environments. Made with a forged ASTM A105 carbon steel body, this 2″ FNPT × FNPT valve is rated for 2000 psig cold working pressure (WOG) up to 1500 psig and is built for reliability and high-flow performance.

H2 Features

Forged carbon steel ASTM A105 body ensures rugged durability and consistency in high-pressure systems
Standard port design (2″ nominal, ~1.5″ orifice) balances flow rate and system pressure drop
1½″ orifice size ideal for minimizing pressure drop in large flow applications
Chrome-plated carbon steel ball and stem with MPTFE/PTFE seats and packing for leak-tight sealing
Blow-out–proof stem design ensures safety under pressure cycling
Zinc phosphate external finish with lever handle and vinyl grip resists corrosion and wear
Vacuum-capable down to 29 in Hg, steam rated to 150 psig saturated steam

H3 Technical Specifications

Specification	Details
Brand	APOLLO
Model	73A‑108‑01
Body Material	Forged carbon steel (ASTM A105)
Ball & Stem Material	Chrome-plated carbon steel
Soft Goods (Seats/Packing)	MPTFE / PTFE
Orifice Size	Approximately 1.5″ (standard port design)
Connection Type	Female NPT × Female NPT
Nominal Size	2″
Maximum WOG Rating	2000 psi (cold working pressure)
Steam Rating	150 psi saturated steam
Vacuum Service	Down to 29 in Hg
Inlet to Outlet Length	4.32 in
Top–Center Height	3.12 in (center of inlet to top of handle)
Approximate Weight	~8.03 lb
Standards & Approvals	MSS SP‑110, ASTM A105, AAR E999032, Prop 65 compliant
Warranty	5 years

H2 Applications

High-flow piping systems for water, oil, and gas, where high pressure is required
Industrial plants, chemical processing, and fabrication lines
Power and HVAC systems with high-pressure cycles
Steam service up to 150 psig or vacuum-rated operations

H2 Installation Tips

Apply PTFE thread sealant or tape to NPT connections for a leak-free seal.
Orient valve for correct lever handle accessibility and full 90° operation.
Slowly open under pressure to avoid water-hammer in steam or fluid lines.
Periodically inspect packing gland and adjust if leakage occurs.
Store handle in closed position when not in use to protect threads.

H2 Reasons to Buy

Engineered for reliability: forged carbon steel construction handles up to 2000 psig WOG pressure in 2″ line sizes
Trusted sealing integrity: PTFE/MPTFE soft goods and chrome-plated ball deliver long-lasting leak prevention
Safety-designed stem: blow-out proof stem enhances operator protection
Corrosion-resistant finish: zinc phosphate coating and vinyl grip handle extends service life
Industry-standard quality: compliant with MSS SP‑110 and Prop 65, backed by a 5-year warranty
