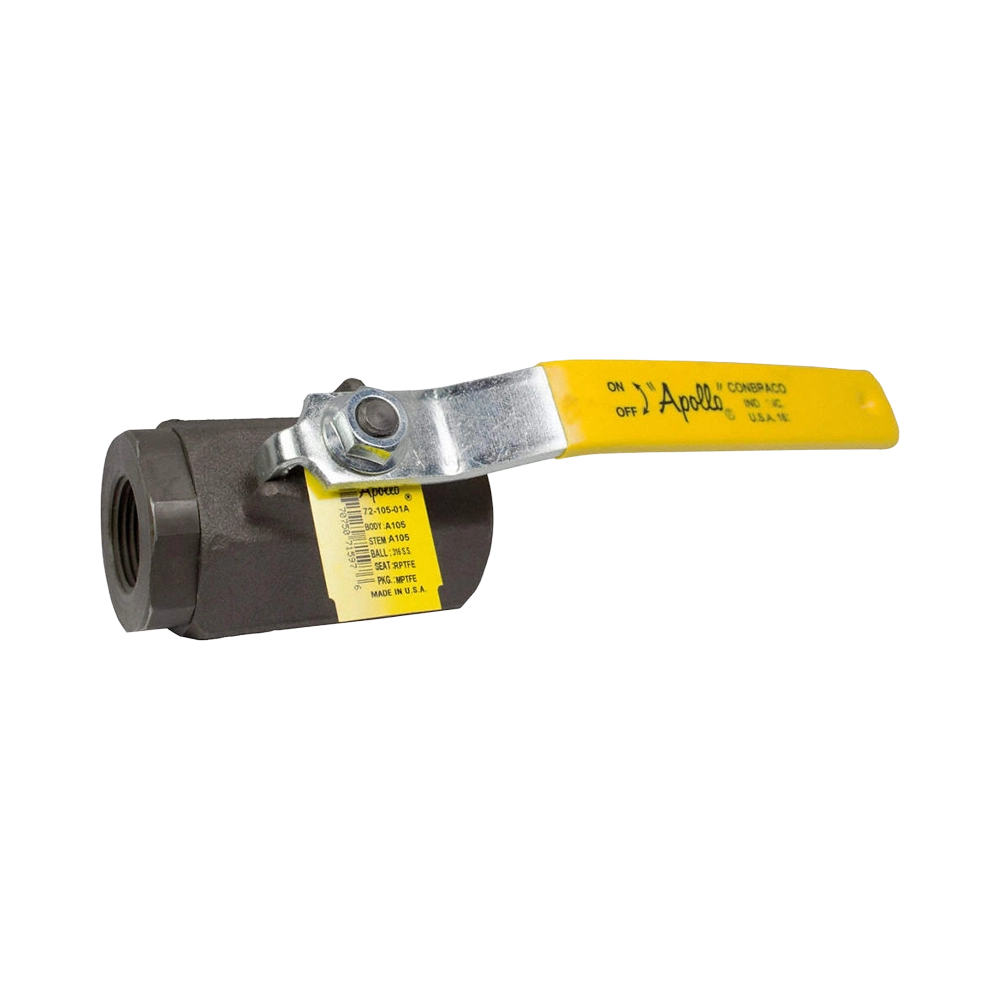

Apollo 72-105-01A ball valve – 1″ full port 3000 PSI forged steel valve

Description

Apollo 72-105-01A ball valve – heavy-duty pressure control at 3000 PSI

The Apollo 72-105-01A ball valve is a high-performance industrial-grade valve designed for use in high-pressure systems up to 3000 PSI. Made from forged carbon steel with full port design, it allows maximum flow with minimal restriction—making it ideal for oil & gas, chemical, steam, and industrial fluid control.

This 1″ valve offers NPT threaded ends, corrosion-resistant components, and precise shut-off with quarter-turn handle operation.

H2: Why choose Apollo 72-105-01A ball valve?

This valve delivers exceptional performance in extreme environments. From steam lines to pressurized oil systems, Apollo 72-105-01A offers unmatched sealing, strength, and flow control.

Key features:

• Size: 1″ (25mm) NPT threaded ends

• Pressure rating: 3000 PSI WOG (Water, Oil, Gas)

• Body material: Forged carbon steel for high-pressure durability

• Ball & stem: Stainless steel

• Full port: Allows unrestricted flow

• Operation: Quarter-turn zinc-plated carbon steel handle with locking device

• Fire-safe design: API 607 certified

• Blowout-proof stem: For added safety

H2: Ideal applications for the Apollo 72-105-01A ball valve

This valve is commonly used where strength, temperature resistance, and absolute reliability are essential:

• Oil & gas pipelines and rigs

• Steam control systems

• High-pressure chemical processing

• Industrial process piping

• Petrochemical plants

• Marine and energy sectors

Its fire-safe certification and high-pressure rating make it a top choice for critical applications in hazardous environments.

H3: Installation and operation tips

1. Ensure piping is depressurized before installation.

2. Apply suitable thread sealant to the male NPT threads.

3. Torque into place without excessive force to avoid distortion.

4. Operate the valve with a firm 90° turn.

5. Use locking tab if required for secure positioning.

Maintenance: Periodic valve cycling is recommended to ensure long-term reliability and prevent sticking under high-temperature conditions.

H2: Built to APOLLO’s world-class standards

Manufactured in accordance with API 598 and API 607 (fire-safe) standards, the Apollo 72-105-01A ball valve is a professional-grade component trusted globally. Apollo’s reputation for precision machining and material integrity ensures that this valve will perform under pressure—literally.

Engineered for safety, efficiency, and reliability, this model is ideal for systems where failure is not an option.

H3: Full port = full flow

The full port design provides the same internal diameter as the piping, ensuring reduced turbulence, lower pressure drop, and maximized flow—essential for systems where flow rate affects performance and efficiency.
