Apollo 71‑504‑01 ball valve – ¾″ bronze standard-port 600 lb

Description

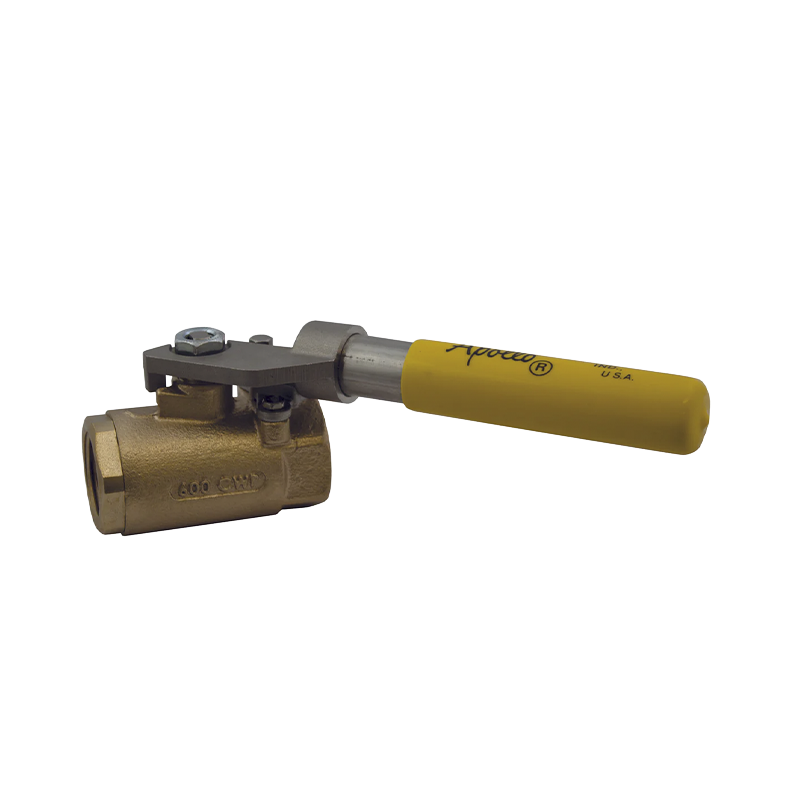

Apollo 71‑504‑01 ball valve is an industrial-grade, 2-piece inline bronze ball valve equipped with a stainless steel spring-return “deadman” handle. Engineered for applications requiring dependable shutoff and safety, this valve combines rugged bronze body construction with high-capacity flow and precise sealing under pressure. Rated for 600 psi CWP (cold working pressure), 150 psi steam, and vacuum service down to 29″ Hg, it adheres to MSS‑SP‑110 standard and comes with a 5‑year warranty.

H2 Features

• Spring-return lever handle automatically returns valve to closed position for safety-critical applications

• Standard-port full flow design balanced with minimized pressure drop (~30 Cv)

• Forged bronze body (ASTM B584‑C84400) ensures durability and corrosion resistance

• Chrome-plated brass ball with PTFE seats for smooth action and leak-tight operation

• 316 SS blowout‑proof stem with adjustable packing gland for added safety and maintenance flexibility

• Vacuum-capable to 29 in Hg, steam-rated to 150 psi, ideal for diverse media

H3 Technical Specifications

H2 Applications

The Apollo 71‑504‑01 ball valve is ideal for:

• Fuel sampling lines and safety shutoff systems

• Industrial compressed air and gas systems

• Steam distribution and condensate return lines

• HVAC, plumbing, and water service lines requiring safe shutoff

• Automated systems needing fail-safe pneumatic shutdown

H2 Installation & Maintenance Tips

1. Use PTFE thread sealant or tape on FNPT ends for reliability.

2. Tighten packing gland to eliminate leaks but avoid over-torque.

3. The spring-return handle ensures safe closing—test periodically.

4. Flush system prior to installation to avoid contamination.

5. Inspect seats and packing annually for wear or buildup.

H2 Reasons to Buy

• Safety-first design with spring-return handle and blowout-proof stem

• High-performance flow with 600 psi rating and vacuum compatibility

• Durable, certified materials—bronze body, PTFE sealing, stainless lever

• Low operating torque for reliable, long-term use

• Five-year warranty and US-made quality with Apollo reliability
