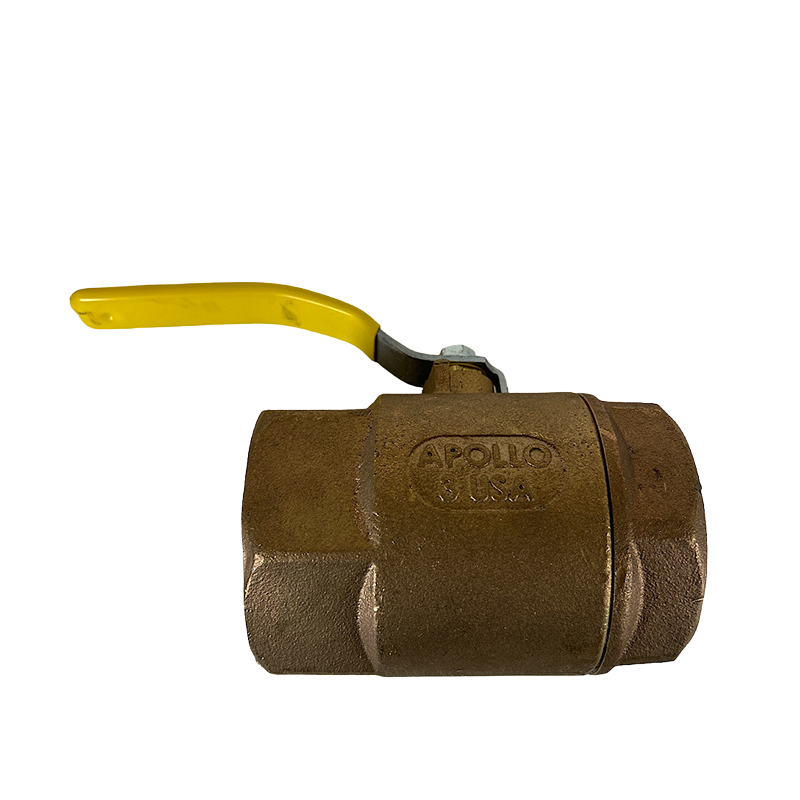

Apollo 70-100-01 Bronze Ball Valve 600 psi

Description

Apollo 70-100-01 Bronze Ball Valve is a two-piece, standard-port FNPT valve engineered for high-pressure industrial service. Manufactured in the USA as part of Apollo’s 70‑100 series, this 3″ valve offers robust shutdown control for water, steam, oil, and vacuum systems.

H2 Features

• 600 psi cold working pressure (CWP) and 150 psi saturated steam (SWP) ratings

• Maximum service temperature 500 °F

• Blow-out-proof stem with adjustable packing gland

• Reinforced seats and chrome-plated ball for durability

• Vacuum rated to 29 in Hg

• Made in USA with 5-year warranty, compliant with MSS SP-110, ARRA, CSA CRN OC10908.5C, Prop 65

H2 Technical Specifications

H2 Applications

• Industrial systems for water, oil, and steam shutdown

• Vacuum service in HVAC, laboratories, and process plants

• General-purpose flow isolation in manufacturing and utilities

• High-temp and pressure-critical pipelines

H2 Installation Tips

• Apply PTFE-compatible thread sealant or tape

• Torque hand-tight, then secure to manufacturer spec (~300–800 in‑lb for 3″)

• Align piping with valve open to prevent misalignment stress

• Operate periodically to ensure packing gland performance

H2 Reasons to Buy

• Heavy-duty design capable of 600 psi/500 °F

• US-made reliability with 5-year warranty and compliance certification

• Low-maintenance operation with durable soft goods and blow-out-proof stem

• Versatile service coverage from hot steam to vacuum applications

• High flow capacity thanks to full-port, standard-port design
