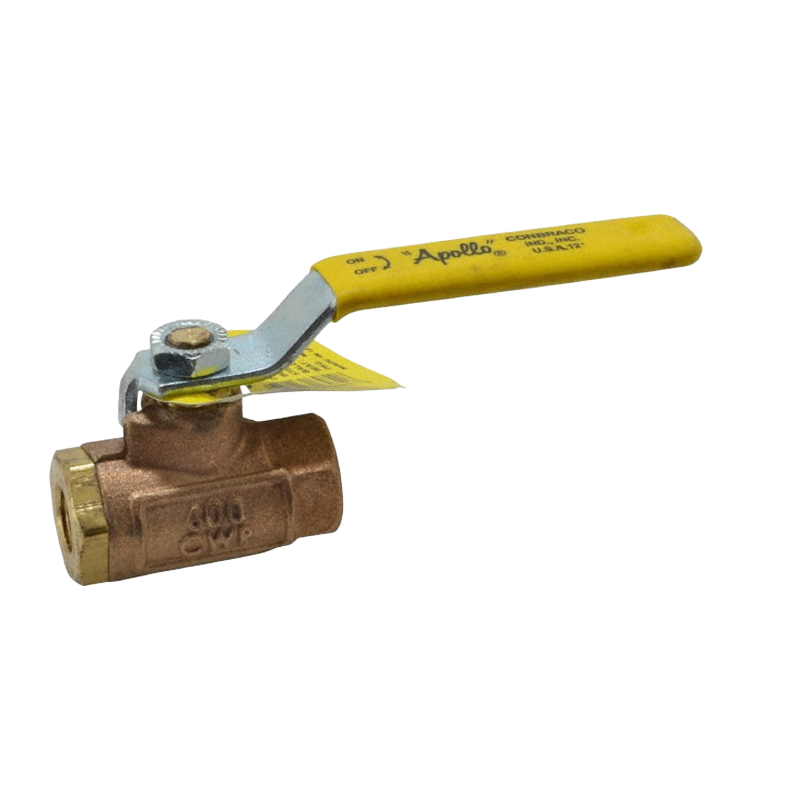

Apollo 70‑101‑01 Ball Valve 600 psi 1/4″

Apollo 70‑101‑01 ball valve offers 600 psi bronze strength and reliable flow control in a compact 1/4″ standard-port design.

Description

Apollo 70‑101‑01 ball valve is a premium-quality, 2-piece bronze ball valve engineered for demanding industrial applications. Rated for a cold working pressure of 600 psi and steam up to 150 psi, it’s built to handle tough conditions with ease.

H2 Features

Durable cast bronze body with standard-port design for solid flow performance and easy installation
Chrome-plated brass ball and reinforced PTFE (RPTFE/MPTFE) seats and stem packing for superior leak resistance
Blow-out‑proof stem and adjustable packing gland ensure operator safety and low maintenance
Threaded FNPT x FNPT connections reliable in pressurized systems
Lever handle with vinyl grip provides quick and clear quarter-turn actuation
Built in the USA with Apollo™ craftsmanship and compliant to MSS SP‑110 and Federal specs

H3 Technical Specifications

Specification	Details
Body Material	Cast bronze
Ball Material	Chrome-plated brass
Seat Material	Reinforced PTFE (RPTFE)
Stem Packing	MPTFE
Connection Type	1/4″ FNPT x FNPT threaded
Port Type	Standard port
Max CWP	600 psi
Max SWP	150 psi (steam)
Temperature Range	−20 °F to 500 °F
Flow Direction	Two-way inline
Handle Type	Zinc-plated steel lever with vinyl grip
Safety Features	Blow-out-proof stem, adjustable gland
Overall Length	2.06 in
Weight	~0.6 lb
Standards & Approvals

H2 Applications

High-pressure industrial fluid and gas shutoff
Steam systems up to 150 psi
HVAC, OEM, and process-control equipment
Vacuum services down to 29 in Hg
Water treatment, chemical, and instrumentation lines

H2 Installation Tips

Clean threaded fittings and apply PTFE tape or sealant.
Torque evenly, do not overtighten to avoid body stress.
Use full 90° lever swing for reliable shutoff.
Open slowly when used with steam to prevent water hammer.
Inspect and tighten packing gland if minor leaks are detected.

H2 Reasons to Buy

High pressure rating: 600 psi CWP makes it one of the toughest bronze valves available.
Superior sealing: Reinforced PTFE seats and strong stem packing prevent leakage.
Built for safety: Blow-out-proof design and quality instrumentation—fighter-grade reliability.
Compact yet powerful: Standard-port 1/4″ size with excellent flow in a small form factor.
Made in the USA: Apollo™ valves are manufactured to stringent standards and backed by a 5‑year warranty
