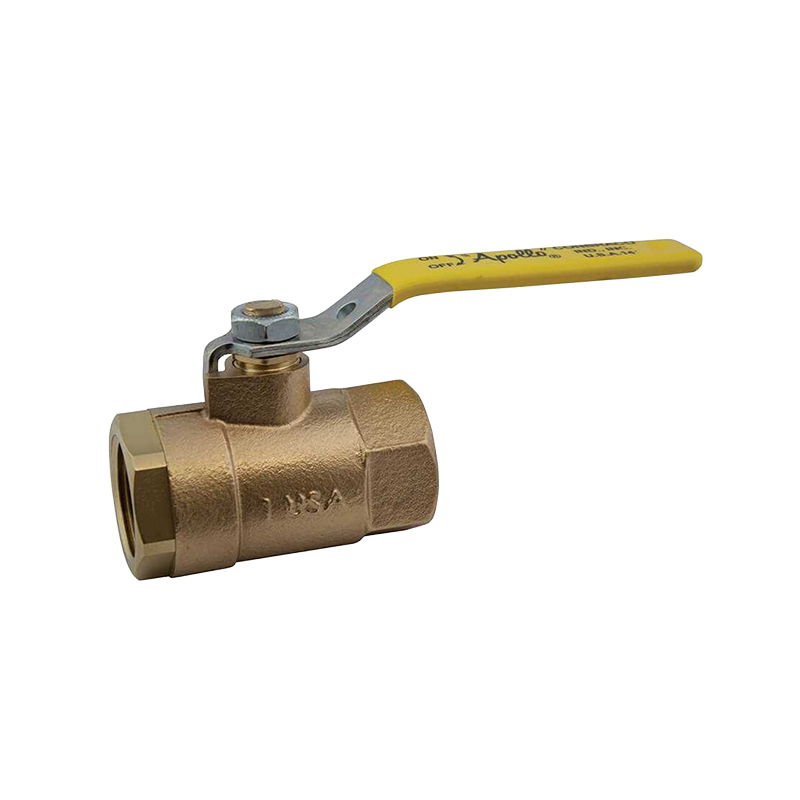

Apollo 32‑102‑01 ¾″ 400 lb Bronze Ball Valve

Apollo 32‑102‑01 ¾″ Bronze Ball Valve is a reduced-port, lever‑operated NPT valve rated 400 psi CWP with PTFE seats and blow‑out‑proof stem—built for industrial use.

Description

Apollo 32‑102‑01 ¾″ Bronze Ball Valve is part of the trusted 32‑100 series—a robust bronze NPT ball valve engineered to meet industrial reliability standards. The Apollo 32‑102‑01 ¾″ Bronze Ball Valve features a cast ASTM B584‑grade bronze body, blow‑out‑proof B16 stem, and PTFE seats with an MPTFE stuffing box ring, ensuring smooth operation and long-term seal integrity. The lever includes a zinc‑plated steel handle with vinyl grip for easy manual control.

This valve offers a 400 psi Cold Working Pressure (CWP) rating and 125 psi Saturated Steam Pressure (SWP), making it suitable for systems handling water, air, steam, and non-corrosive fluids. The ¾″ reduced-port design balances cost and performance for low-flow industrial applications.

Manufactured in the USA, the Apollo 32‑102‑01 ¾″ Bronze Ball Valve meets vacuum service down to 29 in Hg and can handle temperatures up to 400 °F, making it versatile across HVAC, irrigation, light steam, and compressed-air systems. The valve is factory-tested and includes features designed for durability:

H2 Key Features

ASTM B584 bronze body for corrosion resistance and lifespan
PTFE seats & MPTFE packing ensure low torque and leak-tight seal
Blow‑out‑proof stem adds safety under pressure
Zinc-plated steel lever with vinyl grip for easy manual control
400 psi CWP / 125 psi steam / vacuum to 29 in Hg – versatile for many applications

H2 Technical Specifications

Specification	Details
Model	32‑102‑01 (32‑100 Series)
Size	¾″ NPT
Body Material	Bronze (ASTM B584)
Ball Material	Chromium-plated bronze alloy
Seat/Packing	PTFE seats, MPTFE packing
Stem	B16 brass, blow‑out‑proof design
Handle	Zinc-plated steel with vinyl grip
Flow Type	Reduced-port
Cold Working Pressure	400 psi CWP
Saturated Steam Pressure	125 psi SWP
Temperature Range	Up to 400 °F
Vacuum Rating	Down to 29 in Hg
Connection Type	Female NPT × Female NPT
Origin	USA

H2 Applications

The Apollo 32‑102‑01 ¾″ Bronze Ball Valve is suited for:

Industrial water, air, and low-pressure steam systems
HVAC, irrigation, and pump isolation setups
Maintenance kits and general-purpose shutoff needs
Compressed-air and vacuum service

H2 Installation & Maintenance

Apply PTFE tape or proper thread sealant to NPT threads.
Torque per piping specs.
Cycle fully open/close to seat the ball.
Inspect and adjust gland packing if minor leaks appear.
Replace the valve if internal corrosion or wear occurs.

H2 Benefits

Cost-effective reliability with bronze construction and factory testing
Compact forged design ideal for confined spaces
Low-maintenance sealing with PTFE components
Versatile service across steam, air, and vacuum systems
Safety-focused build with blow‑out‑proof stem and durable handle

H2 Why Choose Apollo 32‑102‑01?

As part of the Apollo 32‑100 Series, the Apollo 32‑102‑01 ¾″ Bronze Ball Valve is a proven, high-quality solution for demanding industrial environments. Its blend of bronze durability, high-pressure rating, and safety features make it a dependable choice for engineers, contractors, and service professionals seeking performance and value.
