Victor 5109 flame regulator

Description

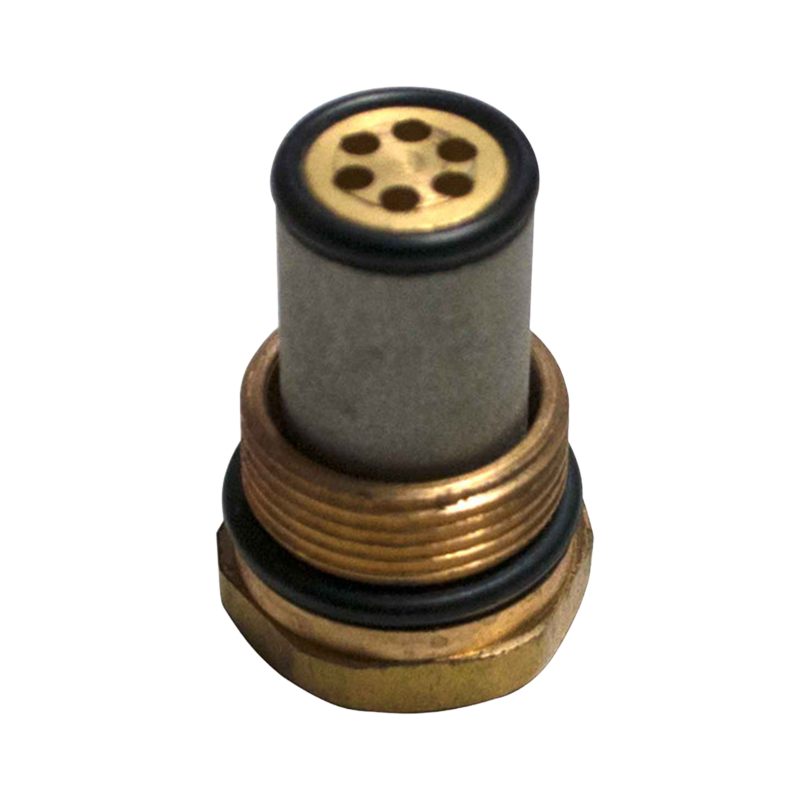

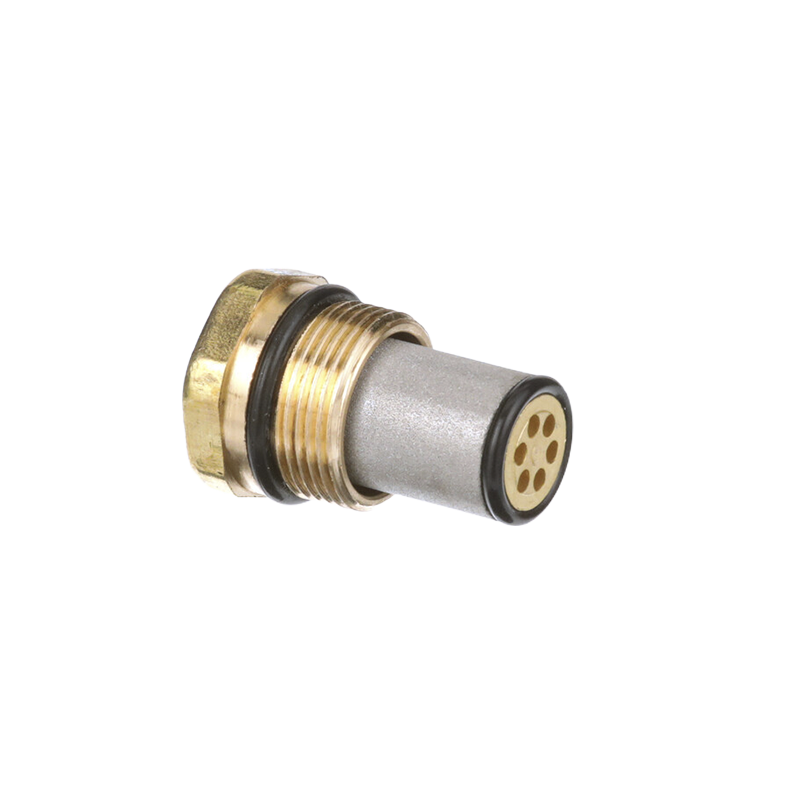

Victor 5109 flame regulator – Vanguard safety regulating cartridge

The Victor 5109 flame regulator, model 0657‑0036, is a premium Vanguard-series replacement cartridge designed for high-performance flame safety and flow control in oxy/fuel welding and cutting operations. Engineered to meet strict safety standards, this cartridge features built-in flashback arrestors and reverse-flow check valves, delivering reliable protection against flame propagation and backflow in both oxygen and fuel gas lines

Key safety and performance features

• Flashback arrestor: Eliminates the risk of flame traveling back through hoses and regulators, ensuring secure welding sessions .

• Reverse flow check valve: Prevents gases from reversing direction, maintaining system integrity

• Vanguard compatibility: Works with Victor Vanguard regulators, including Edge and FBP-1 series

• Thread size 9/16″-18 RH: Standard right-hand thread simplifies installation across various torch setups

Specifications

Applications

• Oxyacetylene welding and cutting: Essential for safe flame control

• Torch handle replacements: Ensures continued safety and performance

• Workshop safety retrofit: Upgrades older regulators to Vanguard standard

• Industrial and maintenance use: Reliable in workshop, construction, and metal fabrication environments

Fire-safety & standards

The integrated flashback arrestor surpasses industry safety expectations by stopping flame propagation immediately, guarding users and equipment. Testing adheres to CGA and ISO standards for Oxy/Fuel systems

Compatibility & installation

• Designed to fit Vanguard-series Victor regulators (Edge, FBP-1)

• Can replace older Oxy/Fuel cartridges in handles like 315HC, 800FC

• Thread seal: Use PTFE tape; torque per Victor instructions ensures leak-free performance

• Periodic inspection recommended to confirm cartridge integrity after heavy use

Why choose this cartridge?

• Combines flashback arrestor and reverse-flow check in a single unit

• Part of trusted Vanguard safety line by Victor Equipment

• Compact and easy to install, ensuring immediate upgrade with low hassle

• Offers lasting safety and compliance in professional welding environments
